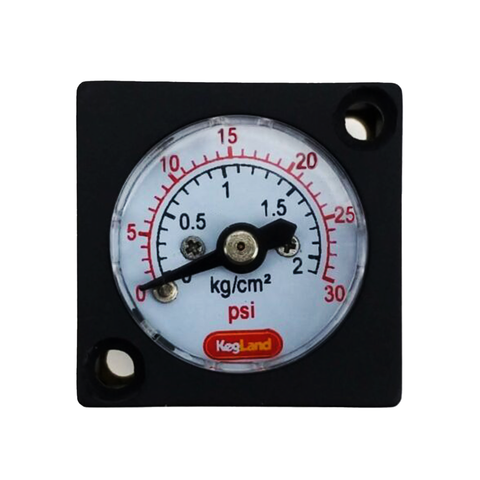

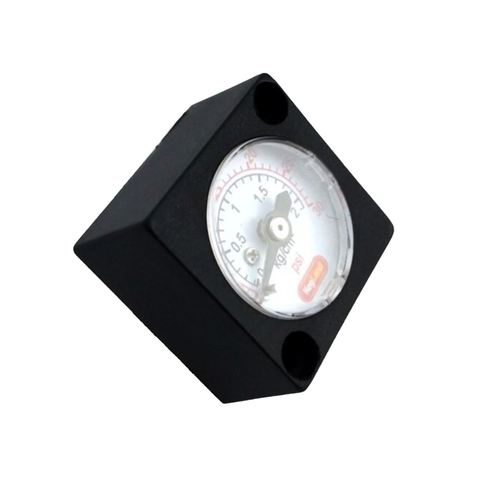

Mini Pressure Gauge (0-30 psi)
This gauge is designed to fit into either our inline regulator or our blowtie units. These can be used for water or gas.
| Pressure | 0-30 psi (0-2 bar) |
| Material | Brass/Plastic/Copper Capillary |
| Dimensions | 27mm x 27mm x 8mm |
| Gauge Diameter | 20mm |
| Probe Diameter | 7.8mm (designed to fit 8mm hole) |
| Accuracy | +/- 3 psi |
WARNING: Do not exceed gauge pressure. If you exceed gauge pressure it will damage the capillary in the gauge and prevent the gauge from working correctly. NEVER exceed the maximum gauge display pressure range.
Not tested or approved for pure oxygen.
